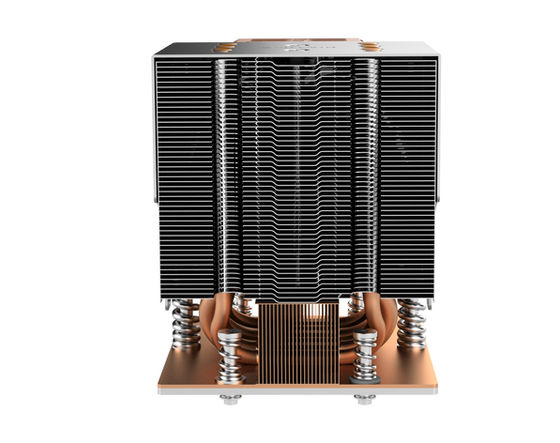

J25

CPU Support

AMD

CPU Socket

SP7

Screw Type

M3.5/M4

Installation Torque

12.5–15.0 kg-cm (10.8–13.0 in-lbf)

Solution

4U

Dimensions

120.0 x 103.6 x 129.0 mm

Weight

TBD

Material

Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Aluminum Heatsink Base

Fan Dimension

102.0 x 102.0 x 30.8 mm

Speed

At Duty Cycle 0~20%: 1250± 200 RPM

At Duty Cycle 50%: 3100± 10% RPM

At Duty Cycle 100%: 6000±10% RPM

Bearing

Double Ball

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.72 W

At Duty Cycle 50%: 3.0 W

At Duty Cycle 100%: 19.2 W

Air Flow

At Duty Cycle 0~20%: 34.33 CFM

At Duty Cycle 50%: 60.33 CFM

At Duty Cycle 100%: 116.77 CFM

Noise Level

At Duty Cycle 0~20%: 20.88 dBA
At Duty Cycle 50%: 40.60 dBA
At Duty Cycle 100%: 54.94 dBA

Air Pressure

At Duty Cycle 0~20%: 0.99 mm-H2O
At Duty Cycle 50%: 6.11 mm-H2O
At Duty Cycle 100%: 22.89 mm-H2O

Lead Wire Pin Out

Pin#1- Black(-)
Pin#2- Black (+)
Pin#3- Black (Tachometer/ Signal Output)
Pin#4- Black (PWM)

Thermal Grease

Shin-Etsu 8195-4 or Equivalent Pre-Printed

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
