CP65-CF
_______________________________
CPU SUPPORT
AMD | Intel
CPU SOCKET
AMD Socket |
AM2/AM3/AM4/AM5/FM1/FM2
Intel Socket |
FCLGA 1150/1151/1155/1156, LGA 1851/1700, FCLGA 2011/2066/SQUARE
APPLICATION
1U
_______________________________
Additional Information
CP65-CF Spec Downloads
Comparison
|
CPU Support |
AMD / Intel |
|
CPU Socket |
FCLGA 1150/1151/1155/1156, Socket LGA1700,FCLGA 2011/2066, AM2/AM3/AM4/AM5/FM1/FM2 |
|
Screw Type |
M3/M4 |
|
Installation Torque |
5-7 in-lb/10-16 in-lb |
|
Connector Type |

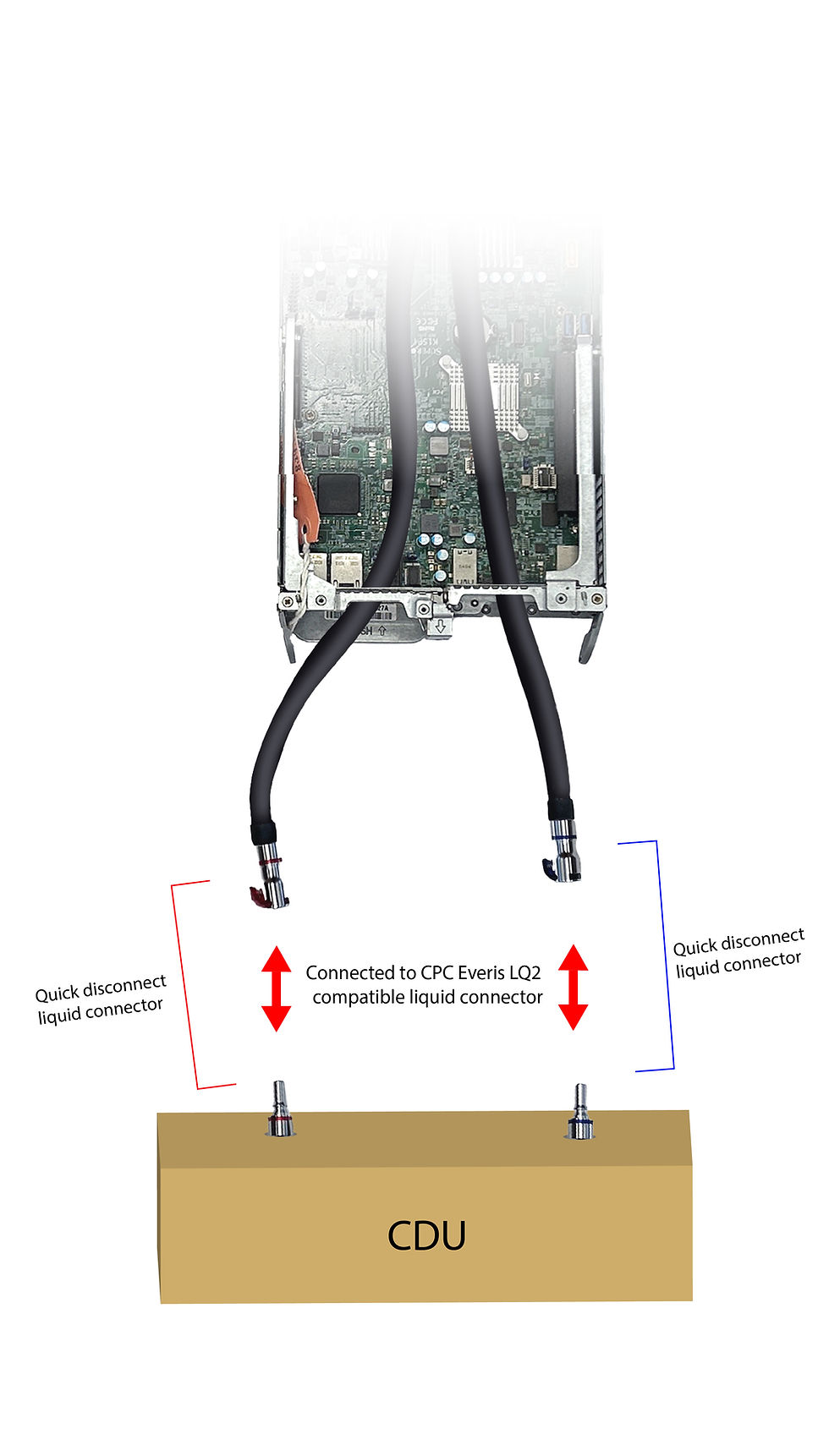

CPC Everis LQ2 female |
|
Hose length |
300 mm |
|
Material |
Copper cold plate with plastic cover, EPDM hose |
|
Form factor |
1U and up |
|
Mounting |
Intel and AMD retention included |
|
Thermal Grease |
Shin-Etsu X23-8079-2 Pre-Printed |
|
Max Normal Operating Pressure |
40 psi |
|
Max Allowable Pressure |
120 psi |
|
Recommended Flow Rate |
<2 L/min |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
*All product specifications and product images are subject to change without notice.
