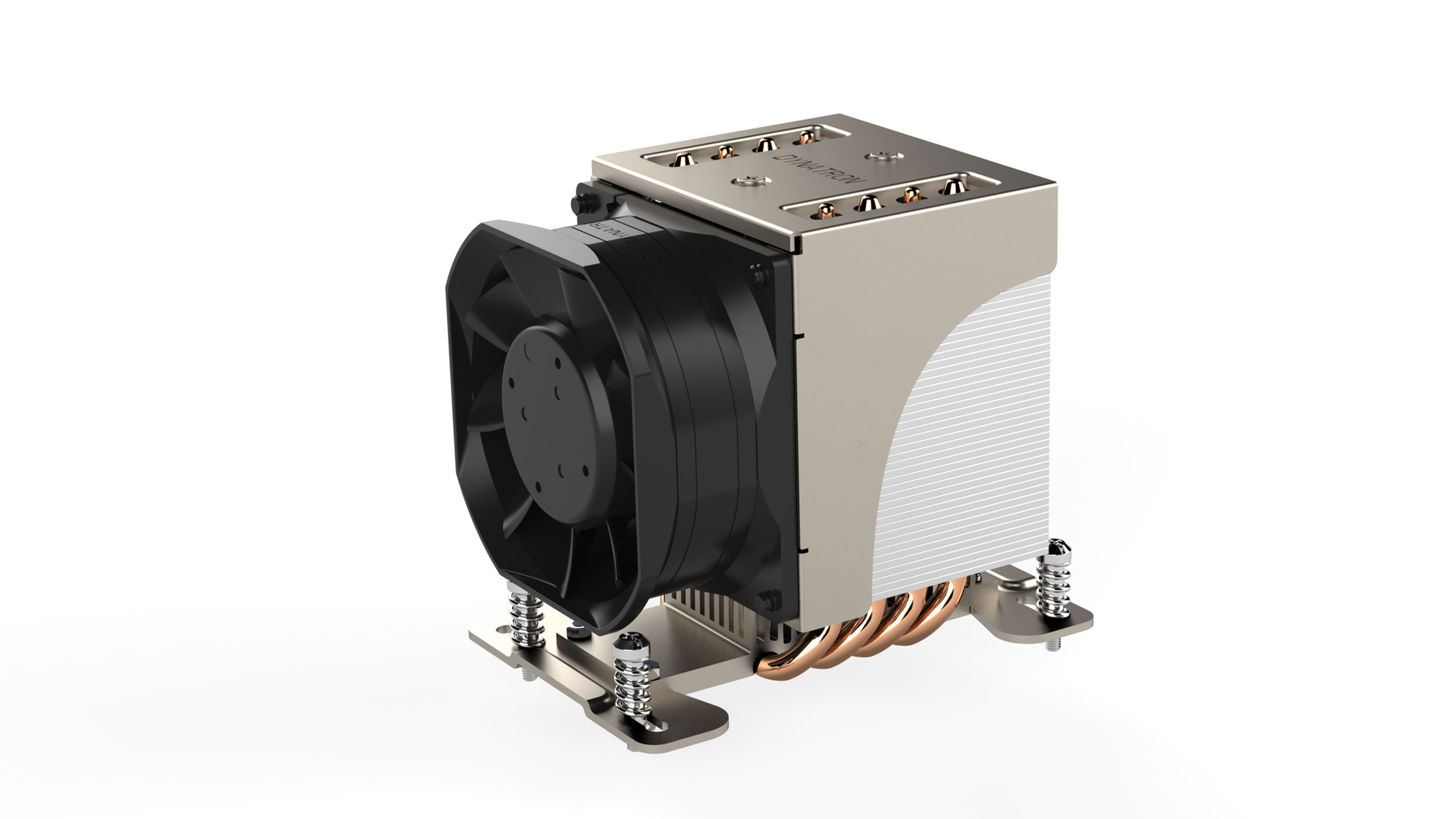

A55

_______________________________

CPU SUPPORT
AMD

CPU SOCKET

AMD Socket |

SP6/TR5

APPLICATION
3U & UP, Workstations

MAXIMUM POWER

SP6: 225W
sTR5: 350W

_______________________________

CPU Support	AMD® THREADRIPPER / AMD® THREADRIPPER PRO 7000 / AMD® EPYC™ Processor
CPU Socket	SP6/TR5
Screw Type	M3.5
Installation Torque	12.5-15.1 in-lb
Solution	3U Server and up, Workstations
Dimensions	120 x 82 x 110 mm (L×W×H)
Weight	656g
Material	Aluminum Heatsink with Heatpipe Embedded
Fan Dimension	80 x 80 x 38 mm
Speed	At Duty Cycle 0~20%: 2400± 200 RPM At Duty Cycle 50%: 4800± 10% RPM At Duty Cycle 100%: 8000±10% RPM
Bearing	2 Ball Bearing
Rated Voltage	12V
Power	At Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W
Air Flow	At Duty Cycle 0~20%: 35.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM
Noise Level	At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA
Life – Continuous operating under normal temperature (40 °C or 104 °F)	70,000 Hours

*All product specifications and product images are subject to change without notice.
